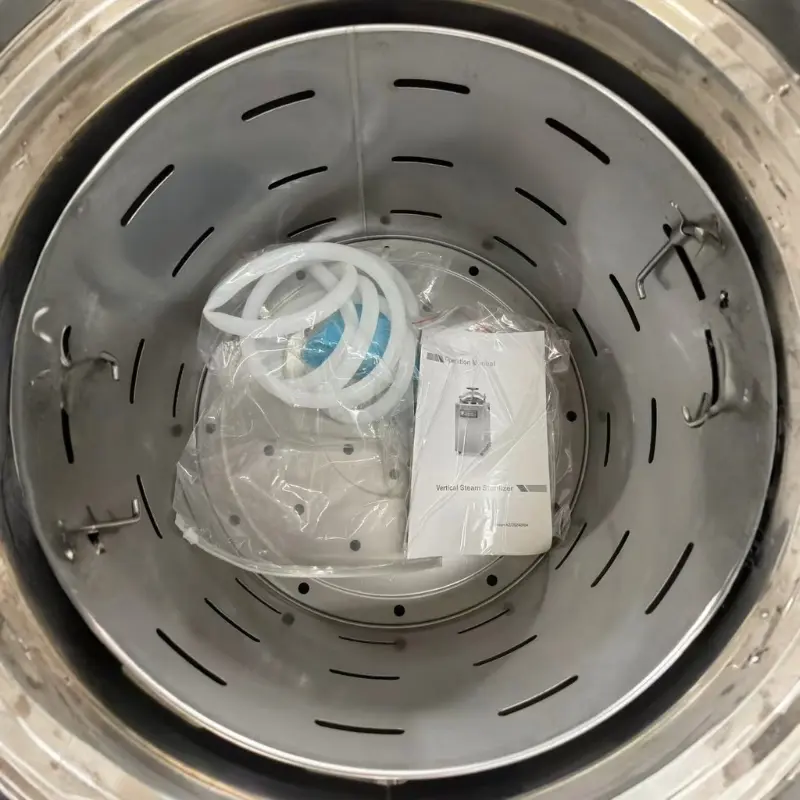

Labotemp Automatic Vertical Autoclave VEA-09 is a high-capacity vertical autoclave designed for laboratories, hospitals, and pharmaceutical facilities requiring reliable and efficient sterilization. This vertical steam sterilizer offers a 100L chamber with precise temperature control from 116°C to 134°C, ensuring effective sterilization of culture media, glassware, surgical instruments, and laboratory equipment. Built with high-quality stainless steel, the system ensures durability, corrosion resistance, and long-term performance in demanding environments.
This laboratory autoclave features microcomputer-based automatic control with digital display, allowing easy setting of sterilization parameters and cycle monitoring. The integrated drying function enhances post-sterilization efficiency, while automatic steam exhaust, cold air discharge, and internal steam circulation ensure uniform sterilization. Advanced safety features including over-temperature protection, over-pressure self-discharge, and low water level protection make this vertical autoclave a safe and dependable solution for routine and critical sterilization applications.
Why Choose Labotemp Automatic Vertical Autoclave VEA-09
✓ Smart Microprocessor Control: Easy operation with accurate temperature and cycle control
✓ Enhanced Safety System: Multiple protections for pressure, temperature, and water level
✓Trusted Autoclave Manufacturer: Labotemp ensures durable design and reliable long-term performance
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Working Temperature | 134°C |
| 2 | Volume | 100 L |
| 3 | Design Temperature | 139°C |
| 4 | Rated Working Pressure | 0.22 MPa |
| 5 | Sterilization Temperature Range | 116°C–134°C |
| 6 | Sterilization Time | 4–120 min |
| Chamber Dimensions | ||
| 7 | Chamber Volume | Ø450 × 650 mm |
| 8 | Bucket Dimension | Ø420 × 540 mm |
| 9 | Basket Dimension | Ø410 × 300 × 2 mm |
| Electrical & Construction | ||
| 10 | Power | 4.5 kW |
| 11 | Voltage | AC 220 V, 50 Hz |
| 12 | Net Weight | 129 kg |
| Physical Dimensions | ||
| 13 | Outer Dimension | 788 × 588 × 1255 mm |
| 14 | Gross Weight | 156 kg |
| 15 | Package Size | 820 × 650 × 1380 mm |
Microbiology Laboratories: Sterilization of culture media, glassware, pipettes, and laboratory tools.
Pharmaceutical QC: Sterilization of media, containers, instruments, and laboratory equipment used in quality-control procedures.
Hospitals & Healthcare: Sterilization of surgical instruments, dressing materials, glassware, and reusable medical tools.
Research Laboratories: Sterilization of laboratory utensils, media, containers, and experimental equipment.
Biotechnology Laboratories: Preparation and sterilization of culture media and materials used in microbial and biological research.
Infection Control: Effective sterilization of reusable instruments and laboratory materials to reduce microbial contamination.
GMP-Compliant Processes: Suitable for controlled sterilization procedures requiring consistent temperature, pressure safety, and automated cycles.
