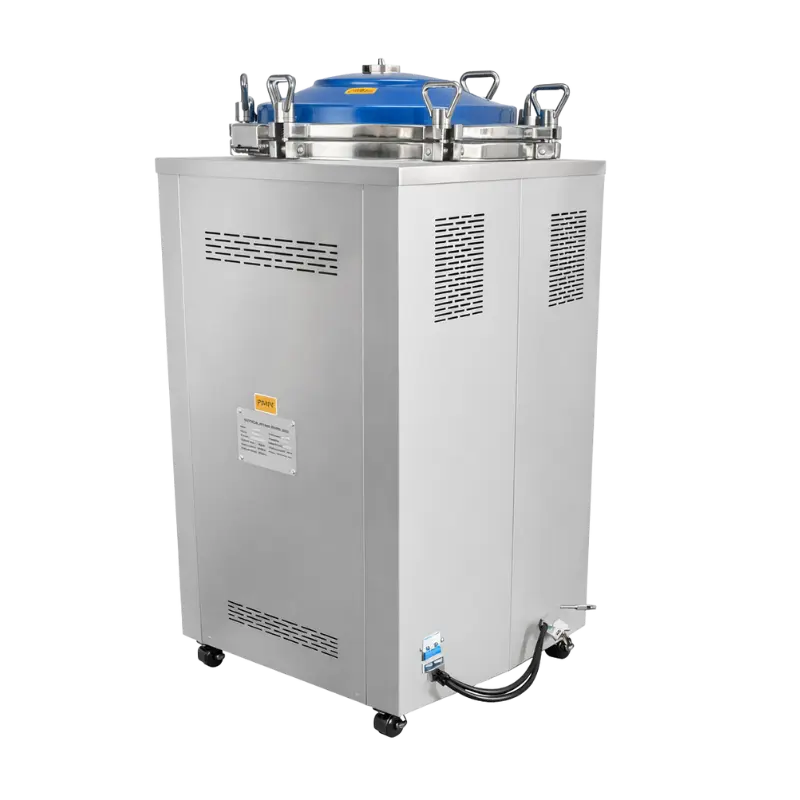

Labotemp Vertical Autoclave Machine VEA-02 is a 75 liter vertical sterilizer designed for medium capacity sterilization in research laboratories, pharmaceutical quality control units, hospitals, and academic institutions. Built with a high quality stainless steel chamber and durable bolt locking structure. It operates at a rated working pressure of 0.22 MPa with a sterilization temperature range of 116°C to 134°C and adjustable cycle time from 4 to 120 minutes, making it suitable for sterilizing glassware, culture media, surgical instruments, laboratory tools, and other heat resistant materials.
The VEA-02 features microcomputer automatic control with digital display and touch buttons for precise parameter adjustment. Integrated safety systems include over temperature protection, over pressure self discharge, low water level protection, and anti dry heating safeguards. Automatic cooling air and automatic exhaust steam at cycle completion enhance workflow efficiency, while buzzer reminder and optional external printer support monitoring and documentation needs.
Why Choose Labotemp Vertical Autoclave Machine VEA-02
✓ Optimal Capacity: 75 liter chamber ideal for medium workload laboratories and hospital departments
✓ Reliable Safety Integration: Multi level protection system ensuring secure and stable sterilization cycles
✓ Certified Manufacturing Standards: Produced under ISO 13485 aligned quality practices and CE certified compliance for assured performance and international acceptance
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Volume | 75 L |
| 2 | Working Temperature | 134°C |
| 3 | Voltage | AC 220 V, 50 Hz |
| 4 | Power | 4.5 kW |
| Sterilization Parameters | ||
| 5 | Design Temperature | 139°C |
| 6 | Sterilization Temp. Setting Range | 116°C–134°C |
| 7 | Design Pressure | 0.25 MPa |
| 8 | Sterilization Time Setting Range | 4–120 min |
| 9 | Rated Working Pressure | 0.22 MPa |
| Chamber Dimensions | ||
| 10 | Chamber Volume | 400 × 625 |
| 11 | Bucket Dimension | 380 × 560 |
| 12 | Basket Dimension | 410 × 300 × 2 |
| Physical Dimensions | ||
| 13 | Outer Dimension (L × W × H) | 525 × 525 × 1060 |
| 14 | Packing Size (L × W × H) | 630 × 680 × 1190 |
| 15 | Gross Weight | 82 kg |
| 16 | Net Weight | 61 kg |
Research Laboratories: Suitable for sterilizing laboratory glassware, instruments, metal tools, culture media, solutions, fabric materials, and other compatible heat- and moisture-resistant items used in research workflows.
Microbiology Laboratories: Supports sterilization of culture media, laboratory instruments, glassware, solutions, and other compatible materials used in microbiological procedures.
Pharmaceutical Quality Control Laboratories: Suitable for sterilizing compatible laboratory glassware, instruments, culture media, and materials used in pharmaceutical testing and quality-control processes.
Hospitals & Healthcare Facilities: Provides reliable steam sterilization for compatible surgical instruments, laboratory tools, metal equipment, and other heat- and moisture-resistant materials.
Academic & University Laboratories: The 75 L capacity is suitable for teaching, experimental, and research laboratories requiring medium-volume steam sterilization.
Clinical & Diagnostic Laboratories: Supports routine sterilization of compatible laboratory instruments, glassware, culture media, and reusable materials.
Laboratory Waste Decontamination: Suitable for steam treatment and decontamination of compatible laboratory waste materials where appropriate sterilization procedures are required.
