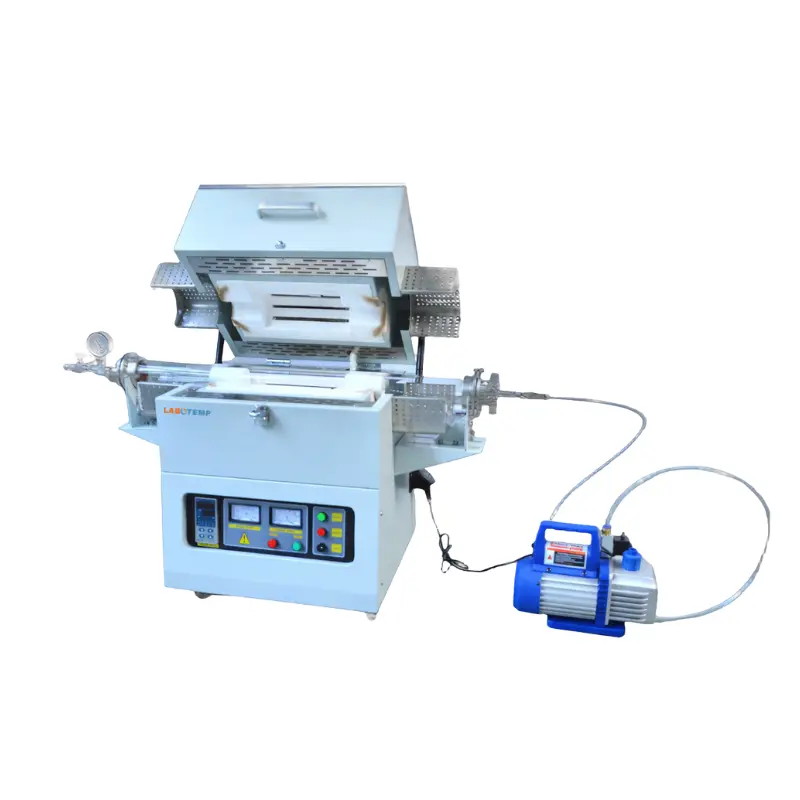

Labotemp High-Temperature Tube Furnace FMT-15 is a high-performance corundum tube furnace rated to 1700°C (working ≤1550°C). It features a ∮40 mm corundum tube, 350 mm heating zone and 1200 mm total tube length. MoSi₂ heating rods, B-type thermocouple and PID control with 30-segment programming deliver ±1°C accuracy and ±5°C uniformity. Alumina ceramic-fiber chamber and 0–20°C/min ramp ensure stable, efficient operation.
Manufactured by an experienced furnace manufacturer and supplied via authorised furnace suppliers, FMT-15 is suited to high-temperature synthesis, sintering, annealing, calcination and crystal growth for ceramics, metals and semiconductors. The horizontal tubular design supports controlled-atmosphere or vacuum tube furnace operation. Optional touchscreen, PC software and safety interlock accessories are available.
Why choose Labotemp Tube Furnace FMT-15?
✓ Industrial-Grade Reliability: MoSi₂ elements and corundum tube for durable 1700°C service.
✓ Precision & Control: PID regulation, B-type thermocouple and 30-segment profiles for repeatable results.
✓ Research-Focused Design: Optimized for demanding laboratory and advanced materials research environments.
| No. | Specification | Value |
|---|---|---|
| 1 | Maximum Temperature | 1700°C |
| 2 | Standard Heating Zone Length (mm) | 350 |
| 3 | Chamber Size (mm) | 40*350 |
| 4 | Standard Tube Diameter (mm) | ∮40 |
| 5 | Total Length of Furnace Tube (mm) | 1200 |
| 6 | External Size (mm) | 794×590×800 |
| 7 | Working Temperature (℃) | ≤1550 |
| 8 | Heating Rate | 0 ~ 20℃/min |
| 9 | Temperature Accuracy (℃) | ±1 |
| 10 | Temperature Uniformity (℃) | ±5 |
| 11 | Furnace Tube Material | Corundum Tube |
| 12 | Heating Element | MoSi₂ Heating Rod |
| 13 | Thermocouple Type | B Type |
| 14 | Chamber Material | Alumina Ceramic Fiber |
| 15 | Power Supply | AC 220V, 50Hz/60Hz |
| 16 | Package Dimensions | 870×750×1220 |
| 17 | Net Weight | 150kg |
| 18 | Gross Weight | 180kg |
| 19 | Accessories Weight | 11Kg |
| 20 | Accessories Package Size | 1200*160*180 mm |
| 21 | Product Package Size | 870*750*1220 mm |
Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research
