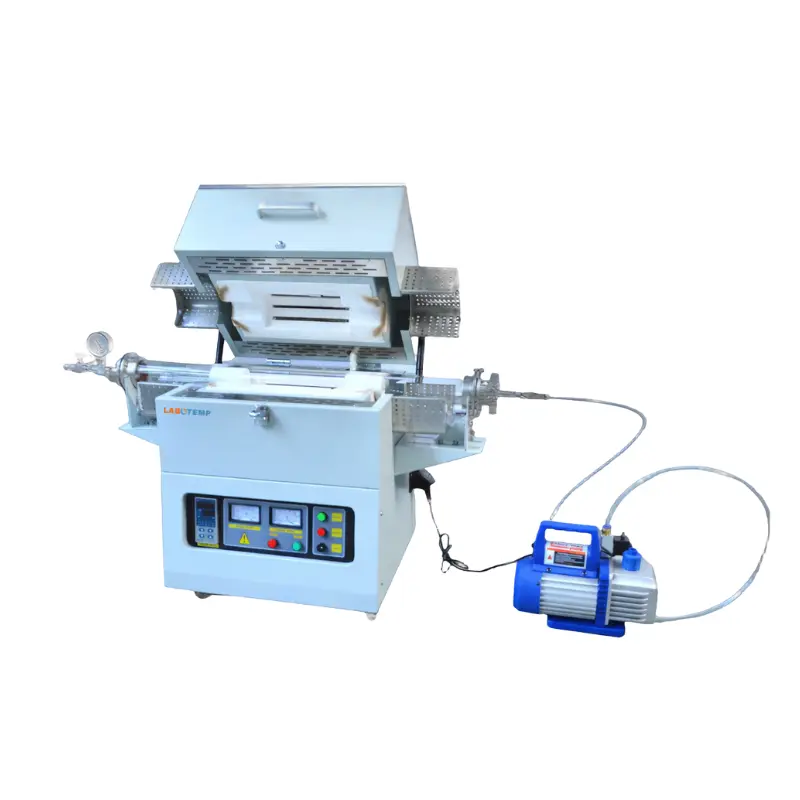

Labotemp High-Temperature Tube Furnace FMT-14 is a precision laboratory tube furnace for extreme thermal processing to 1700°C (working ≤1550°C). It features a ∮80 mm corundum tube, 205 mm heating zone and 1000 mm total tube length. MoSi₂ heating rods, B-type thermocouple, PID automatic control and 30-segment programmable time–temperature curves deliver ±1°C accuracy and ±5°C uniformity in a compact 724×590×807 mm footprint.
Manufactured by a professional furnace manufacturer and supplied through authorised furnace suppliers, FMT-14 is engineered as a lab furnace for high-temperature material synthesis, sintering, annealing, calcination and crystal growth across ceramics, metals and semiconductors. The horizontal tubular design supports controlled-atmosphere and vacuum tube furnace operation; optional touchscreen, PC software and safety interlock accessories are available.
Why choose Labotemp Tube Furnace FMT-14?
✓ Ultra-High Temperature: Reliable MoSi₂ operation to 1700°C.
✓ Precision & Repeatability: PID control with 30-segment profiling.
✓ Research-Focused Design: Optimized for demanding laboratory and advanced materials research environments.
| No. | Specification | Value |
|---|---|---|
| 1 | Maximum Temperature | 1700°C |
| 2 | Standard Heating Zone Length (mm) | 205 |
| 3 | Chamber Size (mm) | 80*205 |
| 4 | Standard Tube Diameter (mm) | ∮80 |
| 5 | Total Length of Furnace Tube (mm) | 1000 |
| 6 | External Size (mm) | 724×590×807 |
| 7 | Working Temperature (℃) | ≤1550 |
| 8 | Heating Rate | 0 ~ 20℃/min |
| 9 | Temperature Accuracy (℃) | ±1 |
| 10 | Temperature Uniformity (℃) | ±5 |
| 11 | Furnace Tube Material | Corundum Tube |
| 12 | Heating Element | MoSi₂ Heating Rod |
| 13 | Thermocouple Type | B Type |
| 14 | Chamber Material | Alumina Ceramic Fiber |
| 15 | Power Supply | AC 220V, 50Hz/60Hz |
| 16 | Package Dimensions | 870×750×1220 |
| 17 | Net Weight | 130kg |
| 18 | Gross Weight | 165kg |
| 19 | Accessories Weight | 9Kg |
| 20 | Accessories Package Size | 900*200*200 mm |
| 21 | Product Package Size | 750*750*1120 mm |
Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research
