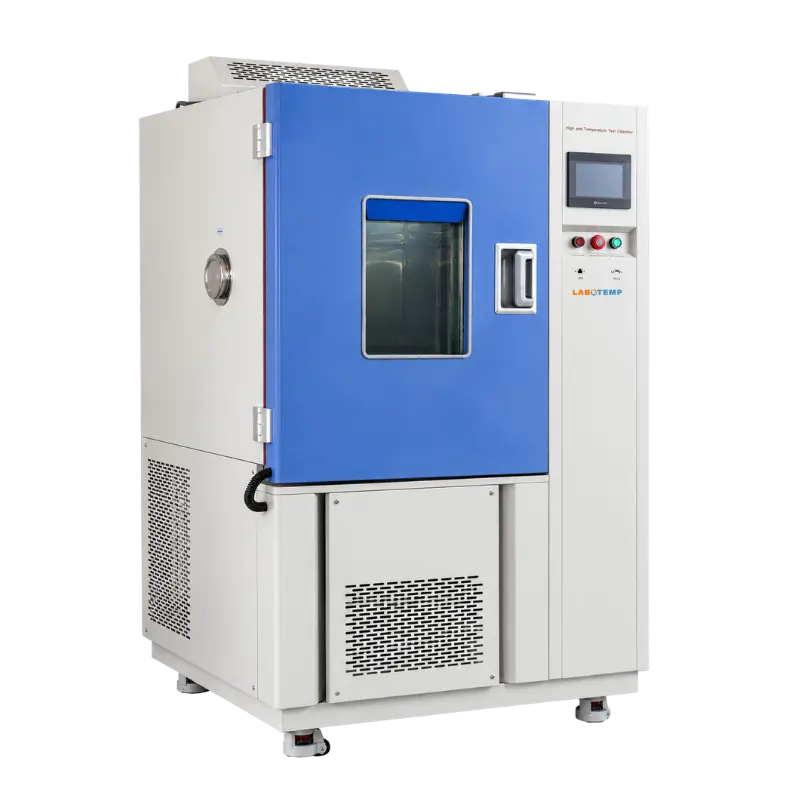

Labotemp Thermal Cyclic Chamber LCC-101 is a high-performance environmental test chamber designed for rapid temperature change and thermal cycling applications in laboratories, electronics manufacturing, automotive testing, aerospace research, and quality control facilities. Engineered for Environmental Stress Screening (ESS), this thermal cycling chamber provides precise temperature transitions for evaluating material durability, component reliability, and product performance under accelerated environmental conditions. With a 100L chamber capacity and temperature ranges up to -70°C to +150°C, the system supports a wide range of thermal testing applications.
Built with a programmable LCD touchscreen controller, Ethernet connectivity, and PC link functionality, the LCC-101 offers accurate monitoring and user-friendly operation. The chamber maintains stable conditions with ±0.5°C temperature fluctuation and controlled 5°C/min heating and cooling rates for dependable thermal cycling performance. Its mechanical compression refrigeration system ensures energy-efficient operation and long-term reliability, while integrated safety protections enhance operational safety. The SUS304 stainless steel interior chamber provides durability and corrosion resistance for continuous laboratory use.
Why Choose Labotemp Thermal Cyclic Chamber LCC-101?
✓ 5°C/min rapid heating and cooling: Supports reliable thermal cycling and ESS testing
✓ Wide temperature range up to -70°C to +150°C: Suitable for environmental testing applications
✓ Programmable touchscreen controller: Enables precise monitoring with Ethernet connectivity
| No. | Specification | Value |
|---|---|---|
| Temperature Performance | ||
| 1 | Temperature Range | -20°C to +150°C (Optional -40°C to +150°C, -70°C to +150°C) |
| 2 | Power Supply | 380V / 220V 50Hz |
| 3 | Temperature Fluctuation | ±0.5°C |
| 4 | Temperature Deviation | ±2.0°C |
| 5 | Cooling Rate | 5°C/min |
| 6 | Heating Rate | 5°C/min |
| Control, Safety | ||
| 7 | Cooling System | Mechanical Compression Refrigeration System |
| 8 | Controller | Programmable Color LCD Touch Screen Controller with Ethernet Connection and PC Link |
| 9 | Exterior Material | Steel Plate with Protective Coating |
| 10 | Interior Material | SUS304 Stainless Steel |
| 11 | Safety Protection | Over-Temperature Protection, Over-Current Protection, Refrigerant High-Pressure Protection, Earth Leakage Protection |
| Dimension & Shpping | ||
| 12 | Internal Dimensions (W × D × H) | 400 × 500 × 500 mm |
| 13 | Overall Dimensions (W × D × H) | 900 × 1050 × 1620 mm |
| 14 | Interior Volume | 100 L |
| 15 | Heat Load | 1000 W |
| 16 | Net Weight | 335kg |
| 17 | Gross Weight | 403kg |
| 18 | Package Size | 1150x1050x1820mm |
Environmental Stress Screening:
Performs rapid thermal cycling to identify early-life failures and improve component reliability.
Electronics Testing:
Evaluates electronic assemblies, sensors, and PCBs under repeated temperature transitions.
Automotive & Aerospace:
Verifies durability and performance of components exposed to extreme temperature variations.
Material Testing:
Assesses thermal expansion, contraction, and fatigue characteristics of engineering materials.
Research & Development:
Supports thermal simulation studies, product development, and environmental testing.
Quality Control:
Validates product reliability and performance before production and certification.
