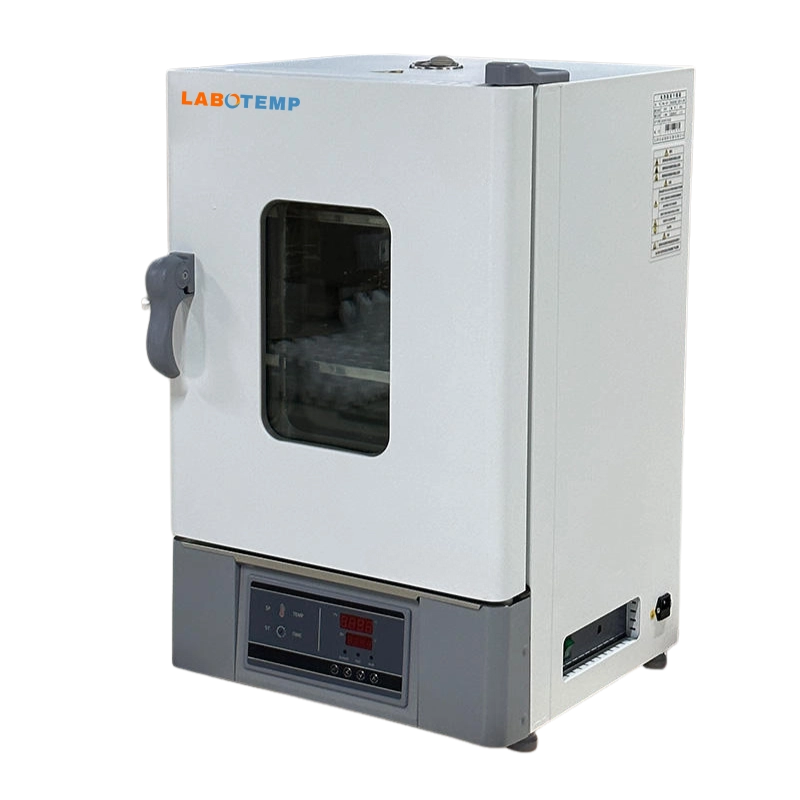

Labotemp Natural Convention Drying Oven FOV-14 is a precision natural drying oven designed for controlled heating, drying and thermal processing in research laboratories, industrial facilities and quality control environments. This scientific oven is suitable for applications such as glassware drying, sample preparation, sterilization and material conditioning where stable and gentle heating is required. With a 65L chamber capacity and a temperature range of RT+10 to 300 °C, the unit supports routine analytical testing and lab drying processes requiring a dependable lab drying oven
This drying oven features a mirror-finish stainless steel inner chamber and chemically resistant cold-rolled steel exterior, providing durability and easy maintenance. A natural convection airflow system allows uniform heat circulation to maintain stable chamber conditions. Practical functions such as fixed-value control, timed operation, automatic stop and scheduled start simplify daily operation. Additional over-temperature protection and temperature-limit alarms enhance operational safety and reliability.
Why choose Labotemp Natural Convention Drying Oven FOV-14?
✓ Consistent Temperature Environment: Natural convection airflow maintains stable heat distribution.
✓ Precision Control System: PID controller enables accurate temperature regulation.
✓Integrated Safety Protection: Alarm and protection system supports safe high-temperature operation.
| No. | Specification | Value |
|---|---|---|
| 1 | Maximum Temperature | 300°C |
| 2 | Chamber Volume | 65 L |
| 3 | Power Rating | 1.5 kW |
| 4 | Temperature Distribution Accuracy | ±3.0% |
| 5 | Interior Material | Mirror stainless steel |
| 6 | Exterior Material | Cold-rolled steel with chemical-resistant coating |
| 7 | Insulation Material | Alumina silicate fiber |
| 8 | Heating Element | Finned stainless steel heating tube |
| 9 | Air Vent (Controller) | Ø28 mm × 1 (top) |
| 10 | Temperature Control Method | Dual PID digital tube display |
| 11 | Timer | 0–9999 minutes |
| 12 | Program Function | single-stage temperature control, 50 programs × 50 steps |
| 13 | Sensor | Pt100 |
| 14 | Safety Device | Anti-rise device |
| 15 | Internal Dimensions | 400×360×450mm |
| 16 | External Dimensions | 518×550×860mm |
| 17 | Package Dimensions | 642×628×980mm |
| 18 | Temperature Resolution | 0.1°C |
| 19 | Partition Load Capacity | 15 kg |
| 20 | Number of Layers | 8 / 2 |
| 21 | Partition Spacing | 40 mm |
| 22 | Power Supply | AC 220V, 50–60 Hz / 7.2A |
| 23 | Temperature Fluctuation | ±1.0°C |
| 24 | Net / Gross Weight | 43 / 49kg |
Used for precise drying, heating, sterilizing, and curing of samples in laboratories and research facilities. Ideal for thermal processing, temperature stability testing, and moisture removal in experimental setups
