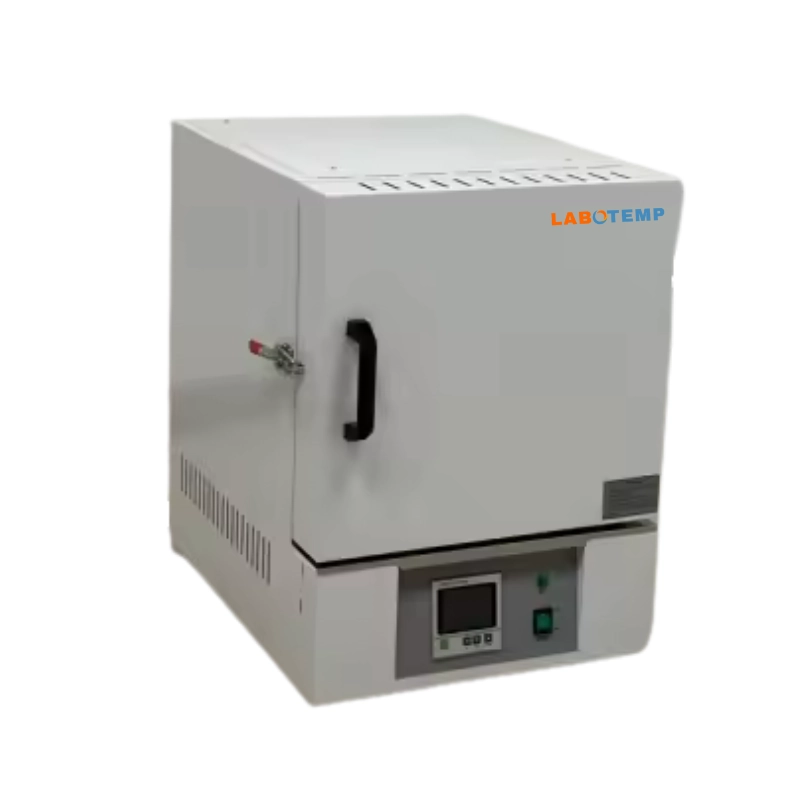

Labotemp Muffle Furnace FMU-06 is an ISO & CE-certified electric muffle furnace engineered for high-capacity laboratory heating up to 1200°C. This large 16 L lab muffle furnace features a robust aluminum-silicate insulated chamber and four-sided heating to deliver uniform temperature distribution for consistent, repeatable results. A digital double-row PID controller with K-type thermocouple provides 1°C resolution and ±5°C stability, while touch-key temperature setting and automatic constant-temperature mode ensure simple and reliable operation.
Designed for research institutes, material testing labs and industrial quality control, this high-efficiency furnace supports ashing, calcination, sintering, heat treatment, thermal analysis and sample preparation. Manufactured by Labotemp, a trusted muffle furnace manufacturer and laboratory furnace supplier, FMU-06 offers durable construction, low maintenance and dependable long-term performance.
Why choose Muffle Furnace FMU-06?
✓ Certified Quality: ISO & CE compliant laboratory furnace
✓ Precise Digital Control: PID controller with K-type sensor (±5°C)
✓ Large Capacity: 16 L chamber for high-volume sample processing
✓ Uniform Temperature: Four-sided heating for consistent results
| No. | Specification | Value |
|---|---|---|
| 1 | Maximum Temperature | 1200°C |
| 2 | Chamber Volume | 16 L |
| 3 | Rated Power | 10 kW |
| 4 | Time from Room Temp. to Max Temp. (min) | 80 |
| 5 | Heating Mode | Automatic constant temperature |
| 6 | Heating Type | Four-sided heating |
| 7 | Exhaust Port | Ø30 mm × 1 |
| 8 | Exhaust Chimney | Stainless steel exhaust |
| 9 | Furnace Body Material | Aluminum silicate |
| 10 | Heater Material | Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) |
| 11 | Temperature Fluctuation | ±5°C |
| 12 | Temperature Control Mode | Digital tube double-row PID |
| 13 | Temperature Setting Mode | Touch four keys |
| 14 | Sensor Type | K-type thermocouple |
| 15 | Power Supply / Rated Current | AC380V / 12A |
| 16 | Internal dimension | 400×250×160mm |
| 17 | External dimension | 750×580×800mm |
| 18 | Temperature Resolution | 1°C |
| 19 | Packing Dimension | 870×630×790 mm |
| 20 | Net Weight | 140kg |
| 21 | Gross Weight | 160kg |
| 22 | Maximum Continuous Operating Temperature | 1100℃ |
Used for ashing, calcination, sintering, heat treatment of various materials in laboratories, research institute, material testing, and thermal analysis, as well as sample preparation
