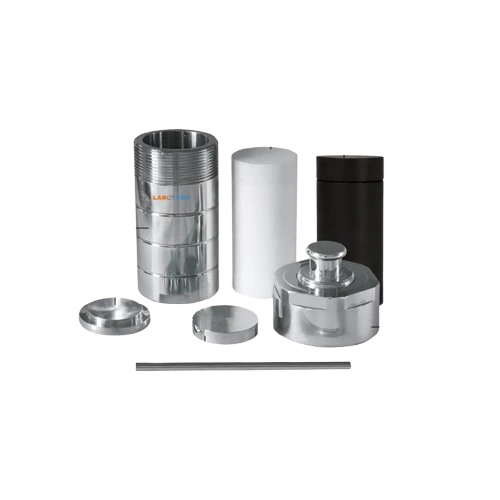

Labotemp Hydrothermal Reactor Autoclave HRA-02 is a compact, TEFLON-lined hydrothermal autoclave reactor engineered for reliable hydrothermal synthesis and pressure digestion. The 50 mL kettle features a 316 stainless steel outer body with PTFE lining, 6.5 mm wall thickness, and secure gasketed lid—built for corrosive acid/alkali environments. Rated up to 200°C (max 250°C) and 3.0 MPa, it enables rapid, nondestructive dissolution of insoluble samples for trace-element and catalytic hydrothermal reactor workflows.
Ideal for petrochemical, biomedical, materials and environmental labs, this hydrothermal synthesis autoclave reactor speeds sample pretreatment (heavy metals, pesticides, organics) while reducing contamination and replacing platinum crucibles for high-purity analyses. Compact, easy to operate and safe, it supports accurate, reproducible results and low contamination risk.
Why choose Labotemp Hydrothermal Reactor Autoclave HRA-02?
✓ Lab efficiency: 50 mL capacity for hydrothermal synthesis and sample preparation
✓ Trusted build: Designed for durability, safety, and consistent hydrothermal performance
✓ Compliance & safety: ISO 13485 & CE certified, rated to 250°C and 3.0 MPa for secure hydrothermal digestion.
| No. | Specification | Value |
|---|---|---|
| Reactor & Operating Performance | ||
| 1 | Capacity | 50 mL |
| 2 | Maximum Temperature | 250°C |
| 3 | Maximum Pressure | 3.0 MPa |
| 4 | Kettle Lid Height | 40 mm |
| 5 | Kettle Body Height | 93 mm |
| 6 | Kettle Body Diameter | 53 mm |
| 7 | Kettle Body Inner Diameter | 40 mm |
| 8 | Kettle Body Wall Thickness | 6.5 mm |
| PTFE Liner & Construction | ||
| 9 | Liner Material | PTFE |
| 10 | Liner Height | 78 mm |
| 11 | Liner Thickness | 5 mm |
| 12 | Liner Inner Diameter | 40 mm |
| 13 | Kettle Body Material | 316 Stainless Steel |
| 14 | Lower Gasket Thickness | 10 mm |
| 15 | Upper Gasket Thickness | 10 mm |
| 16 | Grip Bar | 8 × 120 mm |
| Dimensions & Weight | ||
| 17 | Overall Height | 140 mm |
| 18 | Product Weight | 1.45 kg |
| 19 | Packing Dimensions | 13.2 × 11 × 17.6 cm |
| 20 | Gross Weight | 3 kg |
Hydrothermal Synthesis: Suitable for hydrothermal and solvothermal synthesis, crystal growth, nanomaterial preparation, and development of advanced functional materials.
High-Pressure Sample Digestion: Designed for digestion and dissolution of difficult-to-process samples containing trace elements, heavy metals, and other target compounds.
Petrochemical Research: Supports high-temperature and high-pressure chemical reactions and sample preparation in petrochemical laboratories.
Environmental Testing: Suitable for digestion and preparation of environmental samples such as soil, water, sludge, and other materials before analytical testing.
Food & Chemical Analysis: Useful for sample preparation, chemical reaction studies, and digestion processes in food and chemical laboratories.
Biomedical & Materials Research: Supports laboratory-scale reaction development, material synthesis, and experimental research requiring controlled high-temperature and pressure conditions.
Academic & Research Laboratories: Compact 50 mL capacity makes it suitable for university laboratories, research institutes, and small-scale experimental workflows.
