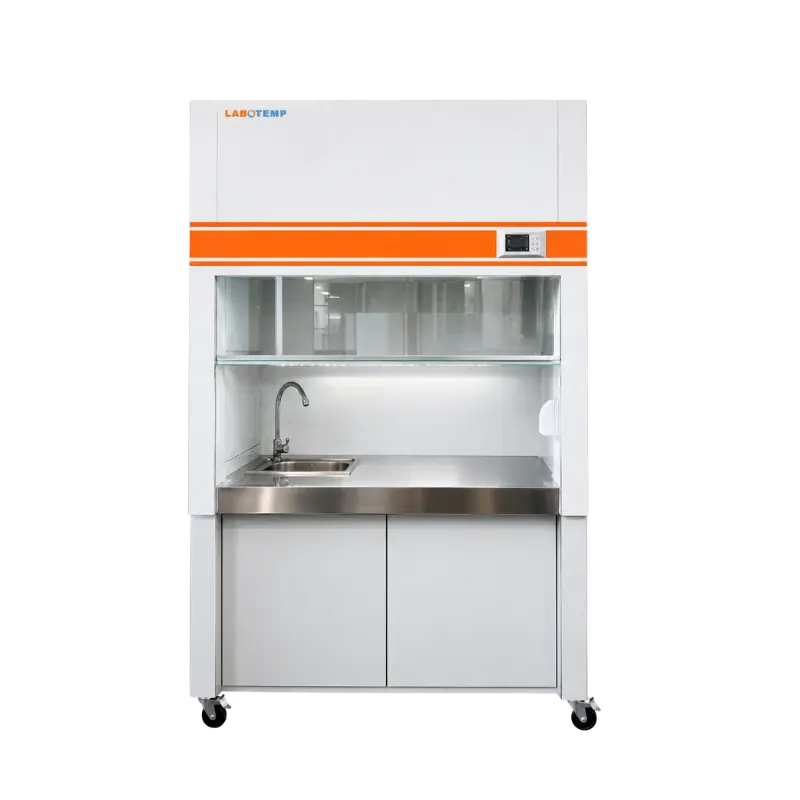

Labotemp Ducted Fume Hood LFH-02 is a high-performance laboratory fume hood designed to provide safe and efficient removal of hazardous fumes, vapors, and airborne contaminants generated during laboratory procedures. Built as a reliable chemical fume hood, it is ideal for chemical analysis, pharmaceutical research, academic laboratories, quality control, and industrial testing facilities. The external ducted exhaust system delivers adjustable face velocity from 0.25–0.45 m/s, helping maintain a clean and protected workspace while supporting consistent laboratory operations. Its integrated water, gas, and electrical utility connections improve workflow efficiency for routine and advanced laboratory applications.
Constructed with a durable all-steel body and a corrosion-resistant stainless steel work surface, LFH-02 is engineered for long-term performance in demanding laboratory environments. The vertically sliding tempered glass sash provides clear visibility and operator protection, while the built-in sink, ventilation system, UV lamp, and multifunction power sockets enhance daily usability. Designed for dependable operation, the hood combines effective ventilation, low maintenance requirements, and robust construction.
Why Choose Labotemp Ducted Fume Hood LFH-02?
✓ Efficient fume containment: Adjustable airflow and ducted exhaust system provide reliable removal of hazardous chemical fumes and vapors.
✓ Durable laboratory construction: Heavy-duty all-steel cabinet with a stainless steel work surface ensures corrosion resistance, easy cleaning, and long service life.
✓ Trusted manufacturer: Labotemp is an experienced manufacturer of laboratory equipment, delivering dependable quality and performance for research, pharmaceutical, academic, and industrial laboratories.
| Performance Specifications | |
| Face Velocity | 0.25–0.45 m/s (Adjustable) |
|---|---|
| Intake Pressure | >0.5 Pa |
| Maximum Power | 400 W |
| UV Lamp | 28 W × 1 |
| Construction & Utilities | |
| Body Construction | All Steel |
| Front Sash | Vertically Sliding Tempered Glass |
| Sink Material | Stainless Steel |
| Water System | Integrated Water Tap |
| Gas System | Integrated Gas Tap |
| Ventilation System | Ducted Exhaust Systemp |
| Electrical & Physical Specifications | |
| Power Supply | AC Single Phase, 220V, 50Hz |
| Working Area (W × D × H) | 1030 × 660 × 680 mm |
| Overall Dimensions (W × D ×H) | 1200 × 740 × 1950 mm |
| Packaging Dimensions (W x D x H) | 1290*830*2030 mm |
| Net Weight | 150 kg |
| Gross Weight | 195 kg |
