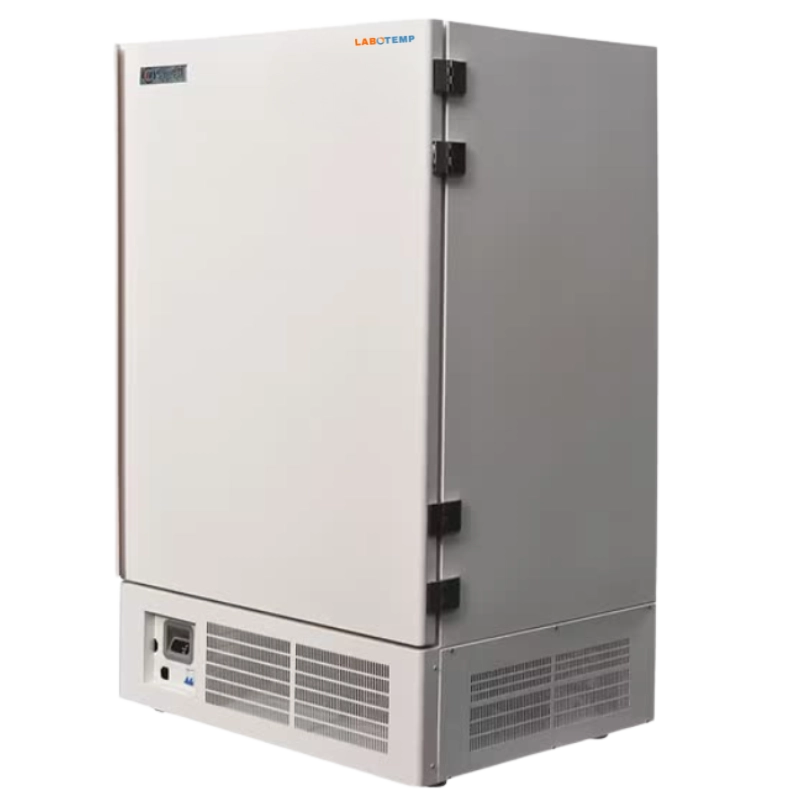

Labotemp Biomedical and Plasma Freezer BPF-07 is a high-capacity Biomedical and Plasma Freezer designed for dependable low-temperature storage in laboratories, hospitals, and research facilities. With an adjustable temperature range of -25°C to -60°C and a 308L chamber, it ensures stable preservation of plasma, vaccines, reagents, and biological samples. The stainless steel 304 interior provides a hygienic and corrosion-resistant environment, while 120 mm insulation enhances thermal stability and minimizes temperature fluctuations during continuous operation.
Engineered for consistent performance, this Plasma Freezer features a SECOP (Danfoss) compressor combined with Germany EBM condenser fans to deliver efficient and uniform cooling. The electronic temperature control system with PTC probe ensures precise monitoring, supported by a clear digital display for real-time data. Built-in audible and visual alarms enhance safety by alerting users to temperature deviations. Designed for durability and energy efficiency, this Biomedical Freezer offers reliable operation for critical storage applications across medical and research environments.
Why choose Labotemp Biomedical and Plasma Freezer BPF-07?
✓ Stable Plasma Freezer Performance: Maintains consistent -60°C storage for sensitive samples
✓ Advanced Safety Monitoring: Alarm system protects temperature-sensitive materials
✓ Trusted Pharmaceutical Freezer Design: Built for durability, hygiene, and long-term use
| No. | Specification | Value |
|---|---|---|
| 1 | Model | BPF-07 |
| 2 | Capacity | 308L |
| 3 | Temperature Range | -25~-60°C, adjustable |
| 4 | Compressor | (SECOP)DANFOSS |
| 5 | Voltage | 220V/50Hz |
| 6 | Alarm | Audible and visual alarm |
| 7 | Input Power | 550W |
| 8 | Power consumption | 8.2kw.h/24h |
| 9 | Protect Grade | I/B |
| 10 | Climate type | N |
| 11 | Refrigerant | Fluorine free environmental protection refrigerant |
| 12 | Refrigeration system | Single compressor refrigeration system |
| 13 | Temperature control | Electronic temperature control |
| 14 | Temperature display | Data display |
| 15 | Probe | PTC |
| 16 | Condenser fans | Germany brand EBM |
| 17 | Exterior Material | Powder coated steel plate |
| 18 | Interior Material | Stainless Steel 304 |
| 19 | Liner | Stainless Steel 304 |
| 20 | Thickness of foaming layer | 120mm |
| 21 | Balance hole | 1(Diameter 18mm) |
| 22 | Castor | 4 |
| 23 | Net weight | 160 kg |
| 24 | External dimensions | 850*880*1740mm |
| 25 | Internal dimensions | 610*590*950mm |
| 26 | Package size | 910*940*1875mm |
| 27 | loading quantity | 22 pcs/20'GP |
Designed for laboratories, medical facilities, and research institutions to safely store biological samples, reagents, vaccines, and other temperature-sensitive materials under ultra-low conditions.
