Labotemp Vertical Autoclave VEA-10 is a high-capacity steam sterilizer designed for efficient sterilization of laboratory instruments, glassware, culture media, surgical tools, and medical supplies in hospitals, research laboratories, pharmaceutical facilities, and diagnostic centers. With a 150L stainless steel chamber and sterilization temperature range of 50°C to 134°C, this vertical sterilizer delivers reliable steam penetration and stable thermal performance for demanding sterilization workflows. The microcomputer automatic control system with digital display and touch buttons allows precise adjustment of sterilization parameters, ensuring accurate and repeatable operation for daily laboratory and clinical use.
Built for long-term reliability and operator safety, this medical sterilizer features a durable stainless steel structure with a self-expanding sealing system for secure chamber closure and pressure stability. Operating at a rated working pressure of 0.22 MPa, the unit integrates multiple protection systems including over-temperature protection, over-pressure self-discharge, low water level protection, and anti-dry burning safeguards. Automatic cooling air circulation and automatic steam exhaust improve operational efficiency and post-cycle handling, while the buzzer reminder and auto-stop function simplify workflow management.
Why Choose Labotemp Vertical Autoclave VEA-10?
✓ Large 150L Chamber: Ideal for high-volume sterilization applications
✓ Intelligent Microcomputer Control: Accurate temperature and cycle management
✓ Advanced Multi-Level Safety: Protection against pressure, overheating, and low water
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Capacity | 150 L |
| 2 | Sterilization Temperature Setting Range | 50°C–134°C |
| 3 | Rated Working Pressure | 0.22 MPa |
| 4 | Rated Working Temperature | 134°C |
| 5 | Sterilization Time Setting Range | 4–120 min |
| 6 | Chamber Volume | Ø500 × 780 mm |

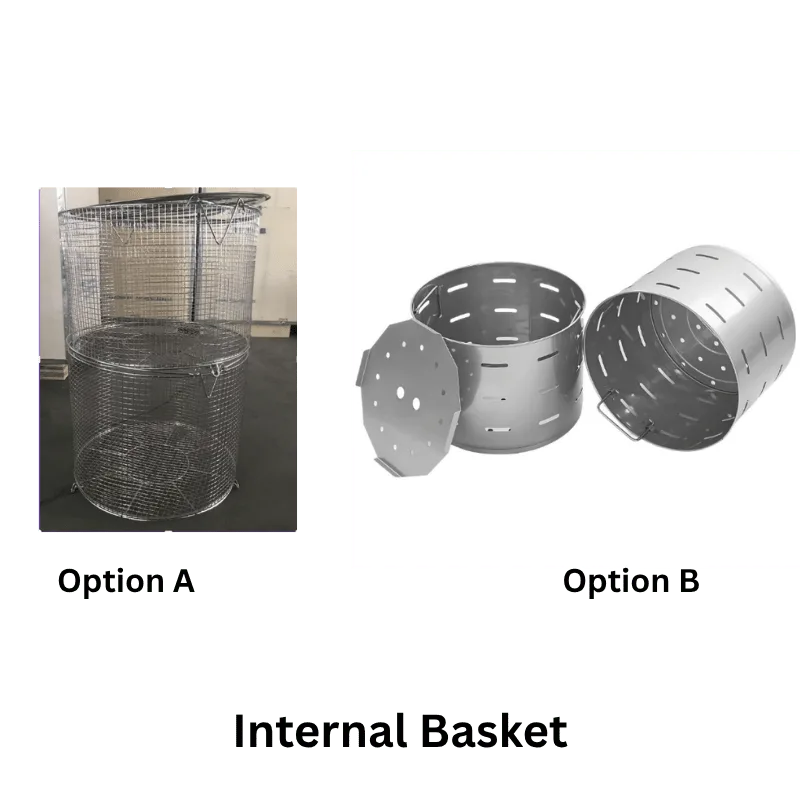

| 7 | Bucket Dimension | Ø470 × 720 mm |
| Electrical & Construction | ||
| 8 | Voltage | AC 220 V, 50 Hz |
| 9 | Power | 6.0 kW |
| Physical Dimensions | ||
| 10 | Outer Dimension | 605 × 649 × 1210 mm |
| 11 | Packing Size (L × W × H) | 750 × 700 × 1370 mm |
| 12 | Gross Weight | 123 kg |
| 13 | Net Weight | 90 kg |
Hospital & Healthcare Facilities: Suitable for sterilizing compatible surgical instruments, stainless-steel tools, textiles, dressing materials, glassware, and reusable medical supplies.
Laboratory Sterilization: Suitable for laboratory glassware, instruments, culture media, containers, and other heat- and moisture-resistant materials.
Pharmaceutical Laboratories: Supports routine sterilization of compatible laboratory equipment, glassware, instruments, and materials used in pharmaceutical processing and quality-control environments.
Research Institutes: Suitable for sterilizing laboratory instruments, glassware, culture-related materials, and reusable equipment in research and testing facilities.
Diagnostic Laboratories: Supports controlled steam sterilization of compatible laboratory instruments, glassware, and reusable materials.
Universities & Academic Laboratories: The 150 L chamber provides practical batch capacity for laboratories requiring reliable high-volume steam sterilization.
Textiles & Dressing Materials: Suitable for compatible heat- and moisture-resistant textiles and dressing materials requiring controlled steam processing.
High-Volume Batch Sterilization: The large 150 L chamber is designed for facilities requiring efficient processing of larger batches while maintaining controlled temperature, pressure, and sterilization time.
