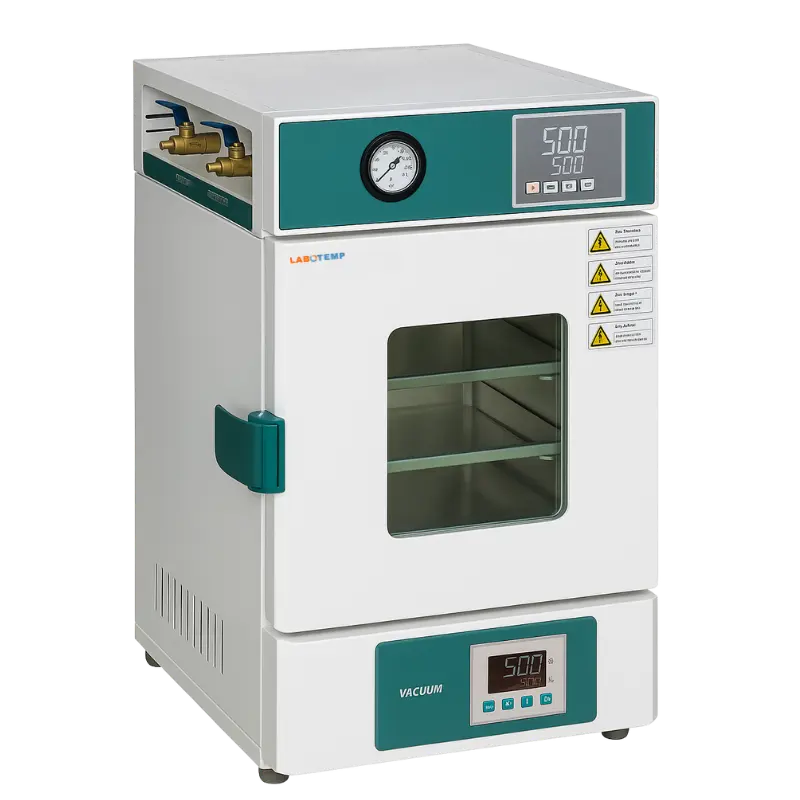

Labotemp Vacuum Oven FOV-26, manufactured by a trusted vacuum oven manufacturer, is a compact vacuum drying oven for laboratory use designed for drying heat-sensitive, moisture-sensitive, and oxidation-prone materials under controlled vacuum conditions. With a temperature range of RT+10°C to 250°C and ±1°C accuracy, it provides stable heating for delicate laboratory processes. The 52 L stainless-steel chamber supports reliable drying of powders, electronic components, pharmaceutical samples, chemicals, and research materials used in laboratories, electronics production, chemical analysis, and materials research.
The oven features a durable stainless steel chamber with alumina silicate cotton insulation for strong heat retention and long service life. A 0.8 kW heating system ensures uniform heating under vacuum conditions for gentle sample processing. The two-section PID controller with upper and lower LED display enables precise temperature monitoring and control. Additional features such as a 0–9999 minute programmable timer and over-temperature alarm protection ensure safe and reliable laboratory operation.
Why choose Labotemp Vacuum Drying Oven FOV-26?
✓ Gentle Vacuum Drying: Four-wall conduction heating supports safe drying of sensitive materials.
✓ Precise Temperature Control: Two-section PID controller maintains heating stability within ±1°C.
✓ ISO & CE Certified Quality: Designed to meet ISO and CE standards for dependable laboratory performance.
| No. | Specification | Value |
|---|---|---|
| 1 | Temperature Range | RT +10–250°C |
| 2 | Usable Vacuum Degree Range | <133 Pa |
| 3 | Temperature Resolution | 0.1°C |
| 4 | Temperature Accuracy | ±1°C |
| 5 | Heating-up Time | 100 min |
| 6 | Heating Mode | Four walls heat conduction and decompression |
| 7 | Inner Chamber | High-quality stainless steel |
| 8 | Outer Shell | Cold rolling steel electrostatic spraying exterior |
| 9 | Insulation Layer | High-quality aluminum silicate cotton (CE certified) |
| 10 | Heater | Stainless steel electric heat tube |
| 11 | Observation Window | Bullet-proof tempered glass |
| 12 | Vacuum Meter | LCD display, accuracy class 0.5 |
| 13 | Nozzle Diameter | 10 mm |
| 14 | Power Rating | 1.4 kW |
| 15 | Temperature Control Mode | Two temperature section PID intelligent |
| 16 | Temperature Setting Mode | Touch button setting |
| 17 | Display Mode | LCD color screen |
| 18 | Timer | 0–9999 min (with timing wait function) |
| 19 | Operation Function | Fixed temp operation, timing, auto stop |
| 20 | Additional Functions | Same |
| 21 | Sensor | PT100 |
| 22 | Safety Device | Over-temperature sound-light alarm |
| 23 | Inner Dimensions (W×L×H) | 415×370×340mm |
| 24 | Outer Dimensions (W×L×H) | 560×540×680mm |
| 25 | Packing Dimensions (W×L×H) | 704×620×814mm |
| 26 | Volume | 52 L |
| 27 | Max Shelf Number | 6 |
| 28 | Load per Rack | 15 kg |
| 29 | Shelf Space | 40 mm |
| 30 | Current Rating (50/60Hz) | AC220V / 6.3A |
| 31 | Shelf | 2 |
| 32 | Shelf Frame | 12 |
| 33 | Net Weight | 67kg |
| 34 | Gross Weight | 92kg |
