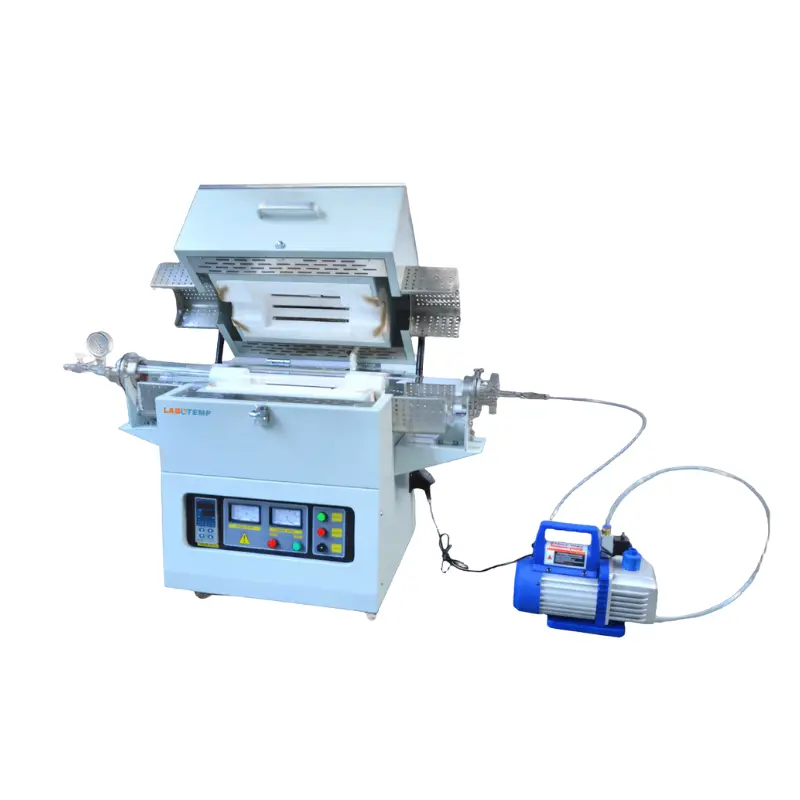

Labotemp High-Temperature Corundum Tube Furnace FMT-17 is a precision laboratory tube furnace rated to 1700°C (working ≤1550°C). It features a ∮40 mm corundum tube, 440 mm single heating zone and 1200 mm total tube length. MoSi₂ heating rods, B-type thermocouple, PID automatic control and 30-segment programmable time–temperature curves deliver ±1°C accuracy and ±5°C uniformity. Alumina insulation and ceramic-fiber chamber enable efficient 0–20°C/min ramps in a compact 794×590×800 mm footprint.
Designed and built by a specialist furnace manufacturer and supplied via authorised furnace suppliers, FMT-17 suits high-temperature synthesis, sintering, annealing, calcination, crystal growth, powder metallurgy and semiconductor diffusion. The horizontal tubular design supports controlled-atmosphere and vacuum configurations with optional touchscreen, PC software and safety interlocks—ideal as a lab furnace and high-temperature tubular furnace for research and production.
Why choose Labotemp Tube Furnace FMT-17?
✓ Ultra-High Temperature: Reliable operation to 1700°C.
✓ Precision & Control: PID regulation, B-type thermocouple and 30-segment profiling.
✓ Process-Ready Engineering: Optimized for demanding ceramic, metal and semiconductor applications.
| No. | Specification | Value |
|---|---|---|
| 1 | Maximum Temperature | 1700°C |
| 2 | Standard Heating Zone Length (mm) | 440 |
| 3 | Chamber Size (mm) | 40×440 |
| 4 | Standard Tube Diameter (mm) | ∮40 |
| 5 | Total Length of Furnace Tube (mm) | 1200 |
| 6 | External Size (mm) | 794×590×800 |
| 7 | Working Temperature (℃) | ≤1550 |
| 8 | Heating Rate | 0 ~ 20℃/min |
| 9 | Temperature Accuracy | ±1 |
| 10 | Temperature Uniformity | ±5 |
| 11 | Furnace Tube Material | Corundum Tube |
| 12 | Heating Element | MoSi₂ Heating Rod |
| 13 | Thermocouple Type | B Type |
| 14 | Chamber Material | Alumina Ceramic Fiber |
| 15 | Power Supply | AC 220V, 50Hz/60Hz |
| 16 | Package Dimensions | 930×740×1150 |
| 17 | Accessories Package Size | 1300x200x300 mm |
| 18 | Net Weight | 170kg |
| 19 | Gross Weight | 210kg |
| 20 | Accessories Weight | 14Kg |
Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research.
