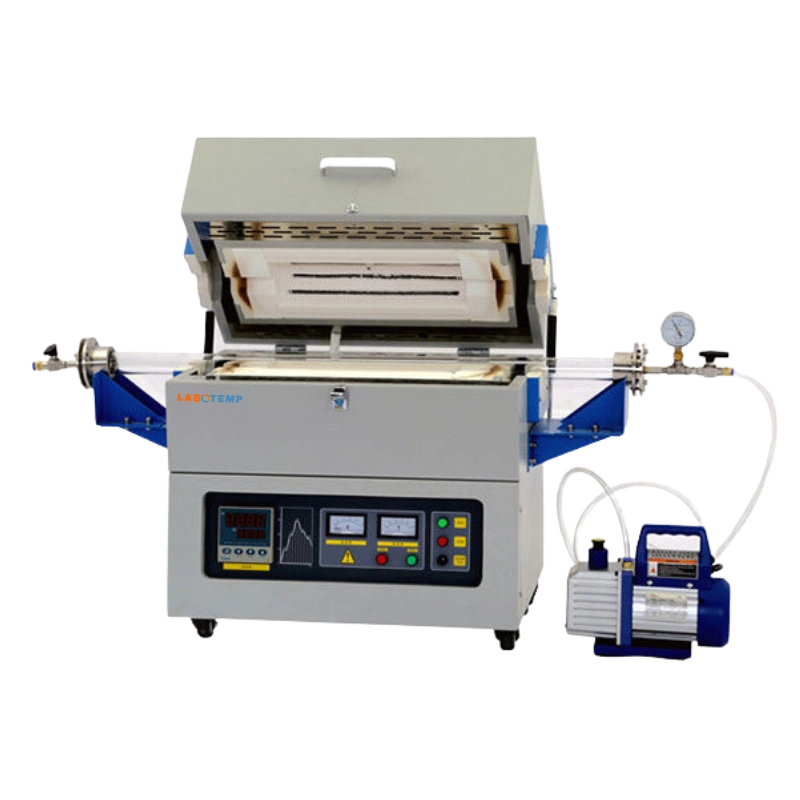

Labotemp Horizontal Tube Furnace FMT-02 is a high-efficiency laboratory tube furnace engineered for precision heat treatment up to 1200°C (working temperature ≤1100°C). Featuring a ∮80 mm high-purity quartz tube with an 80×205 mm chamber and a 205 mm single heating zone, this electric tube furnace delivers excellent thermal stability with ±1°C accuracy and ±5°C uniformity. Equipped with resistance wire heating elements and PID automatic control, it supports 30-segment programmable temperature curves for advanced thermal profiling in research and industrial environments.
Designed for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy and nanomaterial preparation, this tubular furnace supports controlled-atmosphere and vacuum tube furnace configurations with optional accessories. Its alumina ceramic fiber chamber ensures high thermal efficiency, while the horizontal tubular furnace design enables easy loading and uniform heating. Compact and robust, FMT-02 is an ideal lab furnace and small tube furnace for high temperature furnaces and laboratory furnace applications.
Why Choose Labotemp Tube Furnace FMT-02?
✓ Precision Thermal Control: PID-controlled heating ensures stable and repeatable high-temperature processing.
✓ Industrial-Grade Construction: Quartz tube and alumina chamber deliver long service life and efficiency.
✓ Research-Ready Performance: Programmable temperature curves with excellent uniformity.
| No. | Specification | Value |
|---|---|---|
| 1 | Maximum Temperature | 1200°C |
| 2 | Standard Heating Zone Length (mm) | 205 |
| 3 | Chamber Size(mm) | 80*205 |
| 4 | Standard Tube Diameter (mm) | ∮80 |
| 5 | Total Length of Furnace Tube (mm) | 1000 |
| 6 | Working Temperature (℃) | ≤1100 |
| 7 | Temperature Accuracy (℃) | ±1 |
| 8 | Furnace Tube Material | Quartz Tube |
| 9 | Temperature Uniformity (℃) | ±5 |
| 10 | Heating Rate (℃/min) | 0 ~ 20℃/min |
| 11 | External Size | 505×420×646 mm |
| 12 | Heating Element | Resistance Wire |
| 13 | Thermocouple Type | K Type |
| 14 | Chamber Material | Alumina Ceramic Fiber |
| 15 | Power Supply | AC 220V, 50Hz/60Hz |
| 16 | Packaging Dimension | 800 x 600 x 1100 mm |
| 17 | Accessories Packaging Dimension | 900 x 150 x 160 mm |
| 18 | Net Weight | 68kg |
| 19 | Gross Weight | 80kg |
| 20 | Accessories Gross Weight | 7Kg |
Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications
