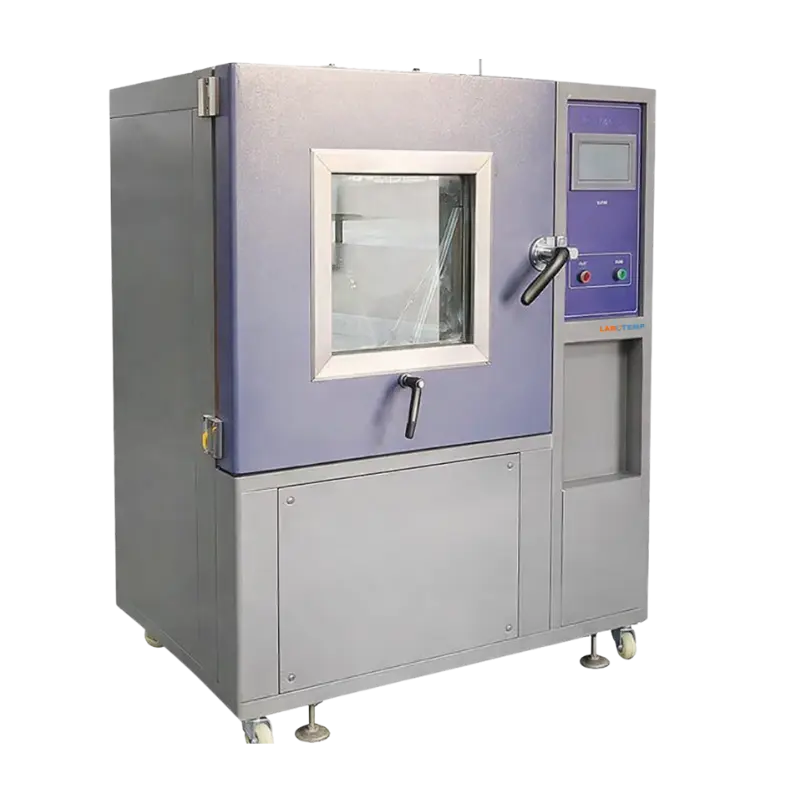

Labotemp Dust Test Chamber SDC-02 is designed to evaluate dust resistance of automotive, electronics, telecom, solar, aerospace and industrial components under controlled floating (F) and flowing (C) dust conditions. It ensures reliable operation of parts such as instrument panels, sensors, electrical enclosures, gear shafts and door locks by verifying sealing performance and operational safety. The chamber features a high-performance dust spray system with selectable floating dust modes, integrated vibration for uniform dust distribution, and a precision dust collector for consistent test results, helping products comply with IEC 60529 IP5X and IP6X standards.
Designed for laboratories and quality control environments, the SDC-02 provides reliable and repeatable sand and dust testing with intuitive controls. It operates within a test temperature range of 20°C ±15°C, humidity range of 45%–85% RH, and programmable time control from 0 to 999 seconds for precise test management and IP protection verification. Manufactured by trusted test chamber manufacturer for testing.
Why choose Labotemp Dust Test Chamber SDC-02?
✓ Reliable dust simulation: Independent flowing modes plus vibration ensure uniform exposure.
✓ Consistent, repeatable tests: Programmable time, temperature and humidity controls for lab-grade results.
✓ Certified quality: CE and ISO 13485 compliance for trusted performance.
| No. | Specification | Value |
|---|---|---|
| 1 | Test Temperature | 20°C ± 15°C |
| 2 | Maximum power consumption | AC220V 50Hz 5KW |
| 3 | Test humidity | 45% ~ 85% RH |
| 4 | External dimensions (W×D×H) cm | 125×120×180 |
| 5 | Internal size (W×D×H) cm | 80×80×80 |
| 6 | Time control | 0 - 999 sec |
| 7 | Net Weight | 280 kg |
| 8 | Gross Weight | 370 kg |
| 9 | Package Size | 1380×1350×2020mm |
Sand and Dust Test Chambers SDC-02 are designed to simulate harsh dusty environments for testing products across electronics, telecom, solar, automotive, aerospace, and industrial sectors. Our chambers evaluate dust resistance and sealing performance, enabling manufacturers to verify IP protection ratings, ensure reliable product operation, and support product development, quality control, and certification testing.
