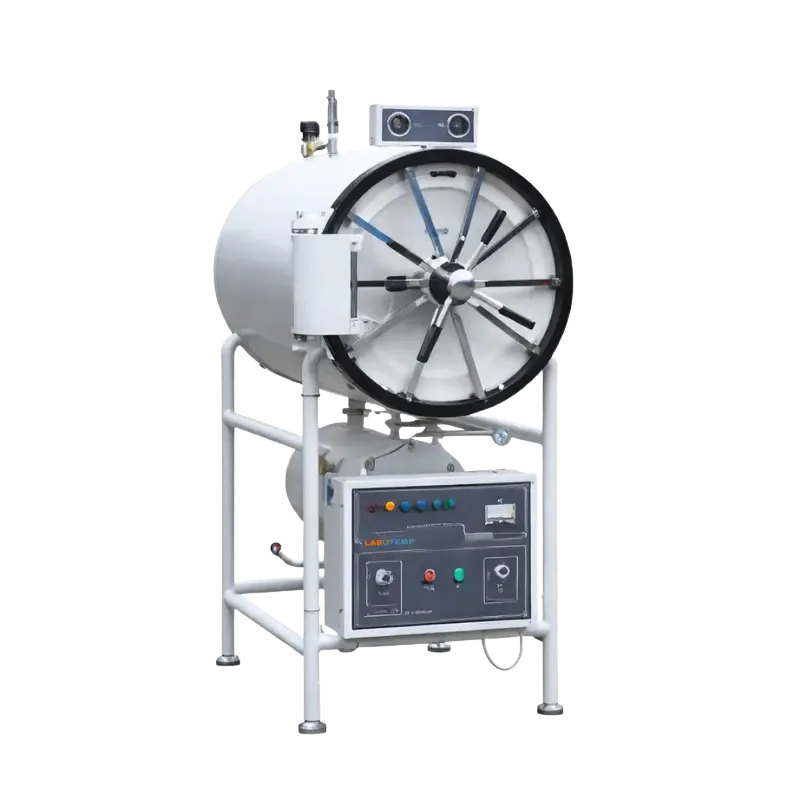

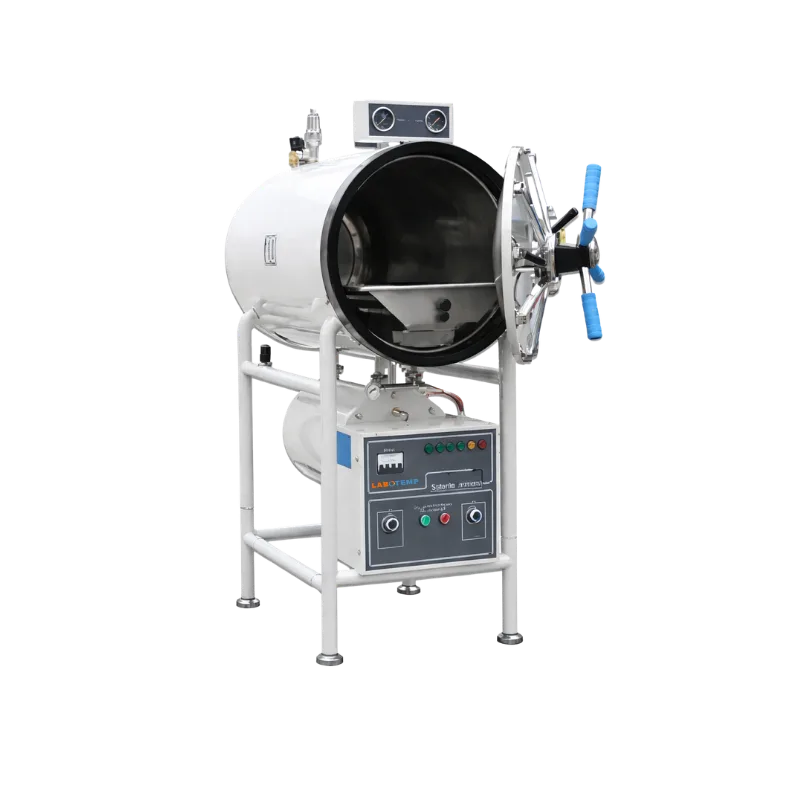

Labotemp Horizontal Autoclave HZA-04 is a 400L horizontal pressure steam sterilizer built for laboratory, medical, and industrial sterilization environments. Operating at 134°C with a working pressure of 0.22 MPa and an adjustable temperature range of 115°C–134°C, it delivers consistent and reliable sterilization across a broad range of load types. The stainless steel chamber (Φ700×1100mm) accommodates large and bulk loads including instruments, media, dressings, biological waste, and rubber components, supporting high-volume workflows with ease.
The HZA-04 supports an optional printer accessory that automatically records time and chamber temperature data for every processing cycle, ensuring complete documentation and traceability. Over-temperature and over-pressure auto-protection devices, a pressure-locked door mechanism, automatic water and power cut-off, and a safety valve that exhausts excess steam to the water tank provide multi-layer protection throughout every cycle. The unit operates on 380V/50Hz and is built for straightforward integration into existing facility setups.
Why Choose Labotemp Horizontal Autoclave HZA-04?
✓ Cycle Documentation: Integrated printer records time and temperature data for every sterilization cycle, supporting traceability and compliance.
✓ Trusted Manufacturer: ISO 13485:2016 and CE-compliant products built to global medical device standards.
✓ Proven Safety: Pressure-locked door, auto power cut-off, water alarm, and over-pressure valve deliver multi-layer protection.
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Working Temperature | 134°C |
| 2 | Capacity | 400 L |
| 3 | Working Pressure | 0.22 MPa |
| 4 | Sterilization Time | 0–60 min |
| 5 | Heat Average | ≤ ±1°C |
| 6 | Drying Time | 0–60 min |
| 7 | Temperature Adjustment | 115°C–134°C |
| 8 | Chamber Size (mm) | Φ700 × 1100 |
| Electrical & Construction | ||
| 9 | Voltage | 380 V / 50 Hz |
| 10 | Power | 18 kW |
| Packaging Information | ||
| 11 | Dimension (mm) | 1430 × 880 × 1830 |
| 12 | Transport Dimension (mm) | 1800 × 1050 × 2100 |
| 13 | Net Weight | 420 kg |
| 14 | Gross Weight | 530 kg |
Hospital & CSSD Facilities: Suitable for high-volume sterilization of compatible medical instruments, dressings, glassware, and reusable equipment.
Pharmaceutical Laboratories: Supports sterilization of laboratory instruments, glassware, culture media, and compatible production materials.
Microbiology & Research Laboratories: Suitable for processing culture media, laboratory instruments, biological waste, and other heat- and moisture-compatible materials.
Healthcare Facilities: Designed for reliable sterilization of compatible medical and surgical materials requiring high-capacity steam processing.
Industrial Applications: Suitable for sterilizing rubber components, laboratory accessories, and other compatible materials in industrial environments.
High-Volume Sterilization: The 400 L chamber is well suited to facilities requiring bulk-load processing, consistent sterilization, integrated drying, and reliable cycle documentation.
